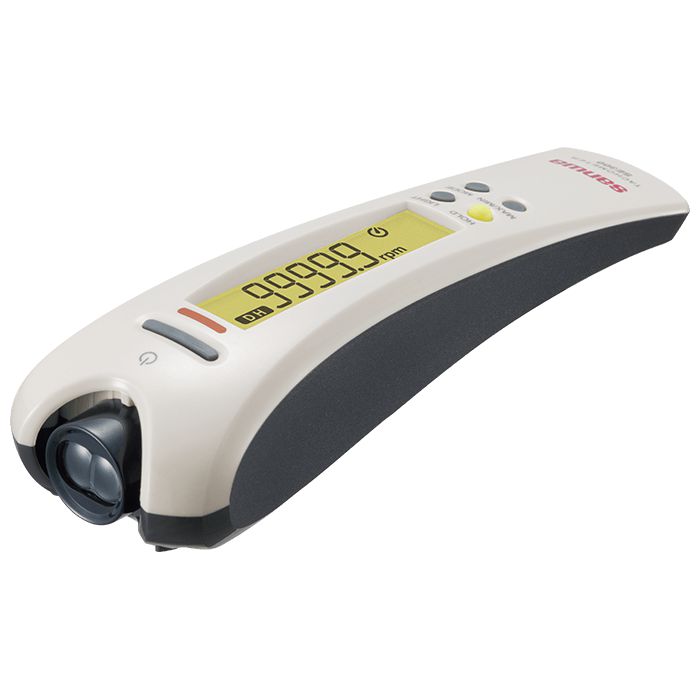

This instrument is a non-contact, handheld type digital tachometer designed for measuring the speeds of rotating objects such as motors and fans.

Contact measurement requires the optional Contact Measurement Attachment Kit (ENC-3)
Non-contact measurement - attach the reflective sticker (provided with the instrument ) on the rotating object
Various measurement mode (rpm, rps, ms, count, m/min, and m/s)
Data hold, MIN/MAX hold
Backlit LCD Display
Auto power save

Display	99999
Sampling	Approx. 1 sec (rpm, rps, cycle, m/min, m/s) Approx. 0.1 sec (count)
Reflection detection distance	約50 to 500 mm
Power supply	R6P/LR6 1.5V×2
Battery life	Approx. 28 hours
Dimensions/mass	H210×W60×D50 mm/Approx. 218 g

Measurement Mode	Non-Contact Measurement	Contact Measurement (with *ENC-3)	Accuracy
rpm	30.0～99999	30.0～19999	±(0.03%+1)
rps	0.50～1600.0	0.50～333.00
ms	0.600～1999.0	3.000～1999.0
count	0～99999	0～99999
m/min	-	3.0～1999.0
m/s	-	0.05～33.00
